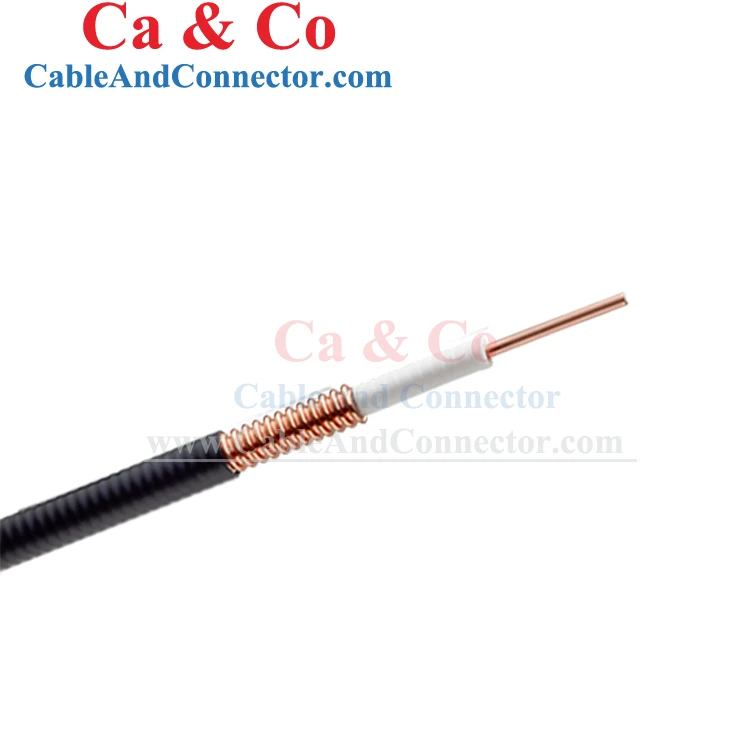

The 3/8" low loss superflex cable combines low attenuation, ultra-flexible design, and excellent shielding performance to ensure stable and high-quality signal transmission over long distances. Its superflexibility allows for easy installation in tight spaces or complex environments, while the multi-layer metal shielding effectively isolates external interference, ensuring reliable signal Etkazish
3/8 "Kam etkazilgan super fron sobiq kabel, ichki kondencher: 2.80 ± 0,05 mis klalad alyuminiy sim + dielektrik
: 7.10 ± 0.15 ko'pemedor: 9,60 ± 0,20 vertikal gofroseed mis trubkasi + ko'ylagi: 10,90 ±
0,25 pe yoki past tutun - Proferiqli pe - bu majburiy, qadoqlash: 500m / yog'och baraban.
Spetsifikatsiya
|
Buyum |
Spetsifikatsiya |
||||
|
Qurilish |
|||||
|
Material |
Diametri (mm) |
||||
|
Ichki direktor |
Mis Clasa Alyuminiy sim |
2.6 |
|||
|
Dielektrik |
Ko'pladik p |
6.7 |
|||
|
Tashqi konvertor |
Helikan gofrirovka qilingan mis trubasi |
9.1 |
|||
|
Ko'ylak |
Tutunli halogen pe yoki past tutilish - pe pe |
10.2 |
|||
|
Elektr va mexanik xususiyatlar |
|||||
|
Yolg'on (ohm) |
50±1 |
||||
|
Kuchxona (PF / m) |
80 |
||||
|
Tezligi (%) |
83 |
||||
|
Eng yuqori darajadagi reytingi (kVt) |
12 |
||||
|
RF cho'qqisi (kV) |
1.04 |
||||
|
Izolyatsiya qarshiliki (m ō. Km) |
>5000 |
||||
|
{{0} chastota (kang) |
13.4 |
||||
|
Izolyatsiya kuchlanishi (kV) |
2.5 |
||||
|
Ichki o'tkazgich DC qarshilik (Ō / km) |
5.0 |
||||
|
Tashqi konvertor DC qarshilik (Ō / km) |
3.5 |
||||
|
Kurash Spark (kV) |
5.0 |
||||
|
Shakillash samaradorligi (DB) |
>120 |
||||
|
Min. Yagona egilish radiusi (mm) |
12.5 |
||||
|
Min. Takroriy bükme radiusi (mm) |
25 |
||||
|
Breaks soni |
15 |
||||
|
Keskinlik kuchi (kg) |
60 |
||||
|
Saqlash tempi (daraja) |
-55-+85 |
||||
|
O'rnatish tembasi (daraja) |
-40-+60 |
||||
|
Operatsion temp. (Daraja) |
-55-+85 |
||||
|
VSSR dan kam yoki unga teng (DB dan katta yoki unga teng yo'qotish) |
Chastota 0.005-3-3ht 0.8-1,0Ght 1.0-2.4ghz 2.0-2.4gz |
db |
|||
|
1.15 (23) |
|||||
|
1.10 (26) |
|||||
|
1.10 (26) |
|||||
|
1.10 (26) |
|||||
|
Zamonaviy (VSWR1.0, Kabel teshigi.20 darajasi) va o'rtacha quvvat (VSWR1.0, Amument temp.40 darajasi) |
|||||
|
Chastota (MHZ) |
O'tish (db / 100m) |
O'rtacha quvvat (kVt) |
|||
|
100 |
4.18 |
1.90 |
|||
|
200 |
5.96 |
1.30 |
|||
|
450 |
9.14 |
0.87 |
|||
|
800 |
12.32 |
0.64 |
|||
|
900 |
13.15 |
0.60 |
|||
|
1000 |
13.85 |
0.57 |
|||
|
1500 |
17.35 |
0.45 |
|||
|
1800 |
19.20 |
0.41 |
|||
|
2000 |
20.30 |
0.39 |
|||
|
2200 |
21.40 |
0.37 |
|||
|
2400 |
22.50 |
0.36 |
|||
|
2500 |
23.00 |
0.35 |
|||
|
3000 |
25.20 |
0.31 |
|||
